1- Double approved: verification of ISO quality management system and CE standards.
2-The heating hose is the same as the Graco machine, with internal heating and low voltage current, to protect the operator's
personal safety to the greatest extent.
3-Equipped with a return valve, which is convenient for the operator to make a return operation and pre-heating the raw materials,
no need heating belt.
4-The booster pump is equipped with an overpressure valve. When the pressure exceeds the set pressure, it will automatically
release pressure to protect the machine.
5-The entire system is equipped with a soft start to protect the machine from transient high current damage.
6-Fahrenheit and Celsius display, convenient for users in different regions to view habits.
7- 1 year warranty, all seals, wearing parts, free replacement within 2 years.
8-Convenient after-sale service-online instruction, LCD teach, video explanation, free accessories, engineer on-site repair, etc.
![High Pressure Polyurea Spray Machine Polyurea Liquid Spray Machine](https://img3.grofrom.com/poly/469b95256f3b294418aeb77cec024e20.webp)
![High Pressure Polyurea Spray Machine Polyurea Liquid Spray Machine](https://img3.grofrom.com/poly/34db7e8d1053a41b6f71b8cb19c4f159.webp)
![High Pressure Polyurea Spray Machine Polyurea Liquid Spray Machine](https://img3.grofrom.com/poly/bf3dc0590acbc60ceba27f7450fea7d7.webp)
![High Pressure Polyurea Spray Machine Polyurea Liquid Spray Machine](https://img3.grofrom.com/poly/a93e234a78a4640a7520008d5bab0785.webp)
![High Pressure Polyurea Spray Machine Polyurea Liquid Spray Machine](https://img3.grofrom.com/poly/3393ad861905b8299aeb2e5c5e5be375.webp)
![High Pressure Polyurea Spray Machine Polyurea Liquid Spray Machine](https://img3.grofrom.com/poly/c098d2d3f51002f974146eea933f061c.webp)
![High Pressure Polyurea Spray Machine Polyurea Liquid Spray Machine](https://img3.grofrom.com/poly/c5cfb900ad7d9f9697de6dfa4762c683.webp)
![High Pressure Polyurea Spray Machine Polyurea Liquid Spray Machine](https://img3.grofrom.com/poly/5f3b0d1a1d636945a1ffe580319b1f81.webp)
2-The heating hose is the same as the Graco machine, with internal heating and low voltage current, to protect the operator's
personal safety to the greatest extent.
3-Equipped with a return valve, which is convenient for the operator to make a return operation and pre-heating the raw materials,
no need heating belt.
4-The booster pump is equipped with an overpressure valve. When the pressure exceeds the set pressure, it will automatically
release pressure to protect the machine.
5-The entire system is equipped with a soft start to protect the machine from transient high current damage.
6-Fahrenheit and Celsius display, convenient for users in different regions to view habits.
7- 1 year warranty, all seals, wearing parts, free replacement within 2 years.
8-Convenient after-sale service-online instruction, LCD teach, video explanation, free accessories, engineer on-site repair, etc.

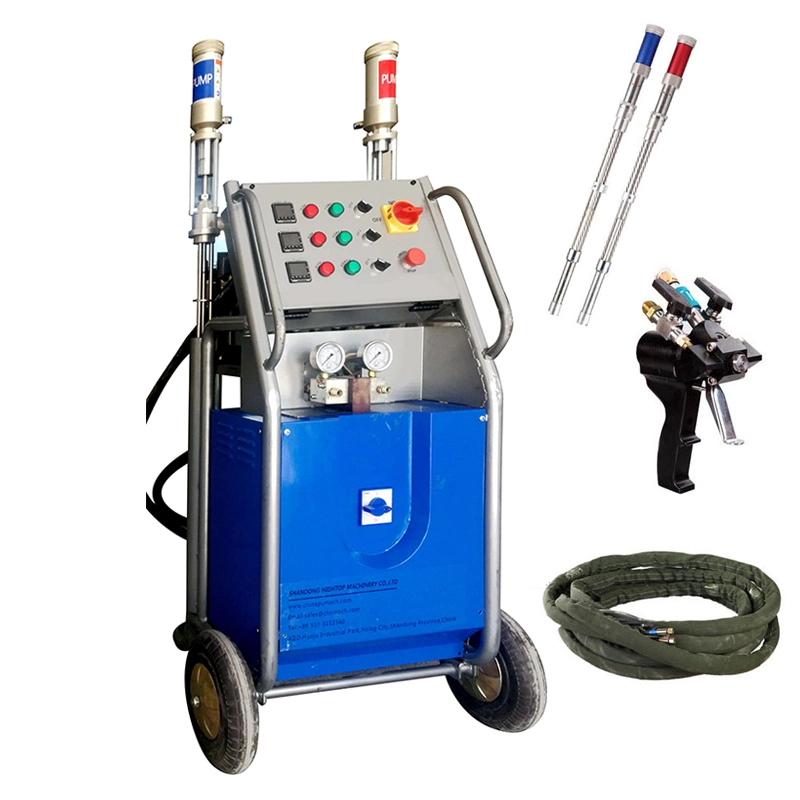

Model | A25 | CNMC-H700 | CNMC-E40 |
Power source | 220V 1 phase &380v/400v or 3 phase | 380v/400v 3 phase | 230V/380v/400v 3 phase |
Heating power | 12KW | 18KW | 14KW |
Driven mode | pneumatic | Hydraulic | Electric |
Air source | 0.3~0.8 MPa ≥0.9m³/min | 0.5~0.8 MPa ≥1.3m³/min | 0.5~0.8 MPa ≥1.3m³/min |
Raw output | 14 kg/min | 12 kg/min | 17 kg/min |
Maximum output pressure | 20MPA | 30MPA | 23MPA |
AB material output ratio | 1:1 | 1:1 | 1:1 |
Spray gun | 1 Set | 1 Set | 1 Set |
Feeding pump | 2 sets | 2 sets | 2 sets |
Heating hose | 15 meters | 15 meters | 15 meters |
Gun connection pipe | 2 pieces | 2 pieces | 2 pieces |
Feed delivery pipe | 2 pieces | 2 pieces | 2 pieces |
Air delivery pipes | 5 meters | 5 meters | 5 meters |
Accessories box | 1 set | 1 set | 1 set |
